Introduction
A hydraulic press that is hot or a machine for pressing heat is a device that provides simple operation and pressing. Heat transfer alters the internal energy of both systems in accordance with the First Law of Thermodynamics. The rate at which the temperature increases can be chosen based on the specific products. The titanium indenter guarantees uniform temperature, quick heating, and extended durability. The pressure head can be modified to guarantee uniform pressure on the component. The temperature is carefully regulated for precise accuracy. Digital pressure tool with predetermined pressure boundaries.
The use of different man-made boards reflects the widespread use of hot press machines. Plywood, joinery board, particle board, ornamental cloth, surface pressing and pasting of different kinds of decorations, and so forth are examples. It is also a very useful tool for drying and leveling veneer and for shaping and leveling pieces of colored decorative wood. The hot press machine is the primary piece of equipment used in the production and processing of wood. Its status is unavoidable. One essential piece of machinery in manufacturing production is the superior hot pressed. It can create mouse pads, man-made boards, yoga mats, insulation foam, and a lot more, making it ideal for small enterprises.
The heat hydraulic press employs the sophisticated electronic control to execute the modification procedure. The system runs on compressed air and oil pressure, therefore having enough air pressure and volume is crucial. Steel plate is used throughout the process, and the logical design allows the two work tables to be used in various configurations.
Video
17 Features
1. Utilizing four columns and three plate configurations, the movable plate runs parallel to the table and demonstrates excellent accuracy.
2. The pressing of heat uses the technology of pulse heating. It has an accurate temperature control with a 0.1s temperature sampling frequency.
3. It makes use of a cylinder that can be adjusted for stroke and has very accurate lower dead point positioning. At 0.01mm, its stroke precision is discretionary.
4. Different working modes include a single working platform, a rotating working platform, and platforms that move left and right.
5. Temperature rise control with multiple stages.
6. Temperature curve displayed in real time.
7. Indexing mechanism with silicone belt.
8. An accurate alignment is provided by the CCD vision system.
9. Program password security, touch operating interface, and large capacity pre-storage are all included.
10. Upper and lower heating templates' individual temperature control within a narrow temperature differential range utilizing an imported intelligent temperature controller.
11. Oil pressure circuit design is simple, requires little horsepower, and is easy to maintain.
12. Hydraulic plywood hot press machines have a hydraulic system that applies the required pressure for bonding wood layers effectively. The hydraulic system guarantees even pressure spread throughout the complete area of the plywood panel.
13. The heating platens in the hot press machine produce heat to activate the adhesive for bonding the wood layers. The heating platens' temperature can be regulated to reach the desired bonding strength and curing time.

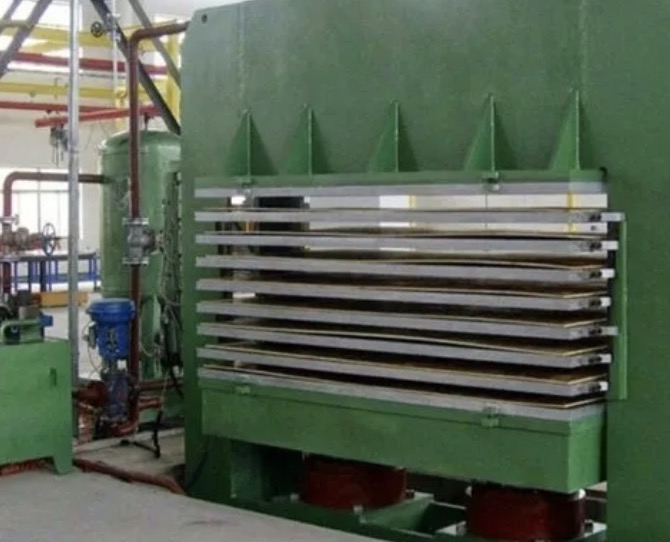

14. Certain hydraulic plywood hot press machines are equipped with a multi-opening configuration, enabling the concurrent pressing of numerous plywood panels. This characteristic enhances efficiency in production and output.
15. Hydraulic plywood hot press machines are created for convenient operation, featuring controls and interfaces that are easy for users to use. Operators are able to effortlessly modify settings and oversee the pressing process while operating.
16. Hot press machines have a strong and long-lasting frame designed to endure the intense pressure and heat produced when pressing. Top-notch materials guarantee durability and effectiveness in the long run.
17. The hydraulic plywood hot press machines come equipped with safety features to safeguard operators and avoid accidents. These characteristics could consist of emergency stop buttons, protective guards, and overload protection systems.
Principle
The functioning of a hot press machine relies on heat and pressure to merge several layers of wood and form a robust plywood panel. The design and function of the machine guarantee that the wood layers are uniformly pressed together and connected, creating top-notch plywood for a variety of uses in the woodworking sector.
Compaction of the wood layers is achieved by the pressure applied by the hot press machine. In order for the adhesive to properly bind the wood layers together, heat and pressure must combined.
The layers of stacked wood will be subjected to pressure and heat for a set time to let the adhesive harden and form a solid bond among the layers. Careful regulation of temperature and pressure is necessary to meet the desired bond strength. Once the pressing process is finished, the plywood sheet is cooled down to solidify the adhesive. Cooling helps stabilize the adhesive and maintains the plywood panel's shape and structural integrity.
Classification
Different types of heat press machines include thermostatic, pulse, duplex, dual head pulse, benchtop, swing away, etc. Hot press machines can be categorized based on the mediums they use such as tin solder, ACF (anisotropic conductive tape), ACP (anisotropic conductive glue), and TBF (hot melt adhesive film). It is appropriate for linking FPC, HSC, and TAB with LCD and PCB. Cell phone designers have begun using the ACF process due to the challenges faced by the traditional soldering process in meeting the fine thermal pressure requirements of smaller PCB or FPC pitches in consumer electronics.
Additionally, a special glue is used to add positive pressure to the machine based on the negative pressure for processing PVC series. The resulting line shape and pasting force are superior to negative pressure equipment due to higher pressure, lower temperature, and shorter film pressure time. This solution resolves the issue of workpiece deformation, especially for large area workpieces, that occurs with negative pressure equipment, ultimately reducing workpiece distortion.
Technical Requirements
1. Our machine utilizes hydraulic principle and high pressure, with balanced pressure application. The pressure fluctuation range of our hot press machine can be adjusted and managed, and pressure can be topped up as needed.
2. Certain hydraulic plywood hot press machines are built with sophisticated control systems, like programmable logic controllers (PLCs) or touch-screen interfaces, to accurately manage the pressing process. Operators are able to establish and oversee settings for temperature, pressure, and pressing time using these control systems.
3. Because it is constructed of original steel, high pressure won't ever cause the equipment to distort.
4. The can be categorized according to their heating method, which includes electric, steam, or thermal oil. Different heating systems have their own benefits and are selected depending on factors like energy efficiency, speed of heating, and cost-effectiveness.
5. To guarantee operator safety and prevent accidents during operation, the hydraulic plywood hot press machine needs to have safety features like emergency stop buttons, safety guards, and overload protection mechanisms.
6. The hydraulic plywood hot press machine's production capacity should align with the woodworking operation's production volume needs. The machine needs to have the capability to manage the target production of plywood panels in terms of quantity and size per hour or shift.
Common Failure Analysis
1. Uneven Pressure Distribution
Uneven pressure distribution on the platen surface is a common problem found in hot press machines. Uneven bonding of the wood layers can occur, causing defects in the plywood panels. Possible reasons for this problem may involve hydraulic cylinders that are worn or damaged, platens that are misaligned, or problems with the pressure control system.
2. Hydraulic cylinder internal stagnation
The hydraulic cylinder's internal components are assembled incorrectly, deformed, with excessive wear or geometrical tolerances, causing high action resistance. This leads to variations in piston speed with stroke position, resulting in slipping or crawling. The majority of causes stem from subpar assembly quality of components, surface scratches, or iron filings created during sintering, all of which raise resistance and lower speed. The answer is to repair again or make adjustments, swap out broken pieces, and get rid of iron shavings.
3. Adhesive Failure
Adhesive failure may happen if the adhesive used to connect the wood layers does not adequately cure or bond them together. This could lead to the separation of layers in the wood or poor adhesion between them. Reasons for adhesive failure can result from incorrect application of adhesive, insufficient curing time or temperature, or the use of expired or poor-quality adhesive.
4. Platen Heating Issues
Issues like uneven heating, inadequate temperature, or overheating of the platens can arise from problems with the hot press machine's heating system. These problems may impact the adhesive curing process and the bonding of the wood layers. Potential reasons for platen heating problems may involve defective heating elements, thermocouples, or temperature regulation mechanisms.
Through consistent maintenance, inspections, and troubleshooting of the hot press machine, operators can quickly detect and resolve common issues to guarantee the efficient production of top-notch plywood panels. Addressing these issues quickly is crucial to reduce downtime and keep the woodworking operation productive.
